T-REV® (Teramoto Racing Eco Valve) is a valve system which optimizes the internal pressure by controlling the blow-by gas.
The system creates negative pressure in the crank case and makes the piston and crank shaft movement super smooth.
The significantly reduced air drag in the engine will lead to...

• Superior throttle response
• Better acceleration feeling
• Reduction of Co2

The principle of the product is extensively adapted to the latest racing machines for the maximum performance.
By making the throttle response super smooth, the harsh elements in the engine operation are eliminated, For all driving stages from the street to the race tracks, this special parts derives the natural potentiality from your engine.

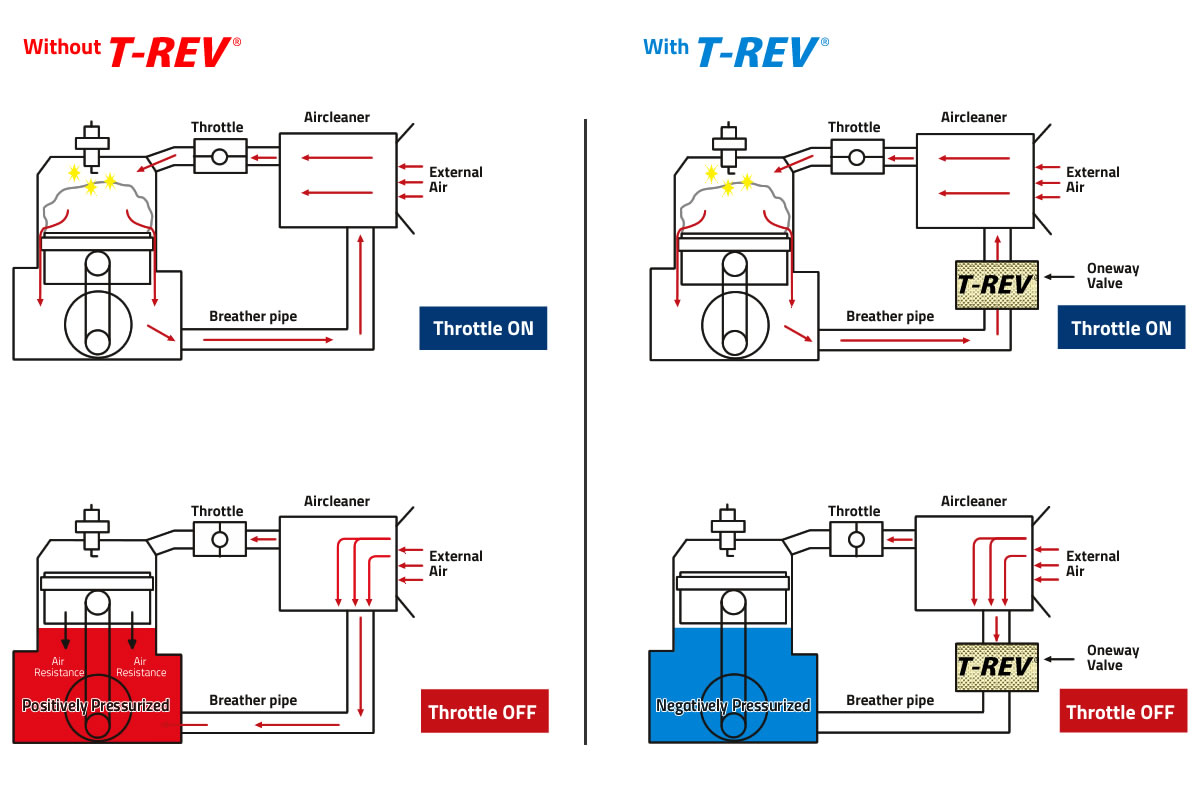

The conventional 4 cycle engine repeats the 1) intake stroke, 2) compression stroke,3) power stroke, and 4) exhaust stroke thousands times in a minute to produce power.
When the piston is pushed down from the dead center in the power stroke, small blow-by gas goes to the crank case through the piston rings, which produces a positive pressure and causes a drag to the piston movement.
The blow-by gas is extracted through the breather pipe but the positive pressure in the crank case tends to remain with the air back-fowed when the piston moves upward or when the throttle is closed (acceleration is off).

The T-REV® SYSTEM, by controlling this back flow in the breather system, optimizes the pressure in the crank case and creates the ultra-smooth piston movement.

The T-REV® is easily installed to the breather pipe and it works with the stock PCV valve and blow-by circulation system. The T-REV® is designed uniquely for each vehicle model depending on its engine spec, joints size, and pipe sizes.
(Please contact the J’S Racing for the current available application)

Please do not disassemble or try to adapt the product to the vehicles which are not specified.
The adjustment component (a black body unit) is especially micro-tuned to each model for the optimum pressure. An attempt to disassemble or modify the product will ruin the setting.
The setting of a T-REV® SYSTEM is based on the stock layout without a significant modification. If you have extended modifications with aftermarket performance parts, the installation location and the piping design might have to be changed.
Please consult J’S Racing or professional shops with experience.

T-REV® SYSTEM uses a unique structure different from the conventional pressure control valve.
The maximum smoothness in blow-by elimination is achieved by 1) increasing the circulation speed in the breather line from the vortex created by the fluid dynamics, 2) making special “Spiral Line” on the internal surface, 3) dividing the reed valve surface into three sides and dispersing the pressure on the each side.

T-REV® SYSTEM, by applying a distinctive triangular pyramid design on the reed valve, removes the possibility of lead valve troubles from the excess air inflow from the air cleaner box and from the oil emulsion.
As long as the flow direction is correct, it is not limited in the direction of the installation.
(There is no top / bottom and left / right.)
All the repair parts are available for the long product life. The shim for the reed valve is likely to wear out as the time goes by.
We recommend a periodical replacement.

The full overhaul is also available at J’S Racing.
